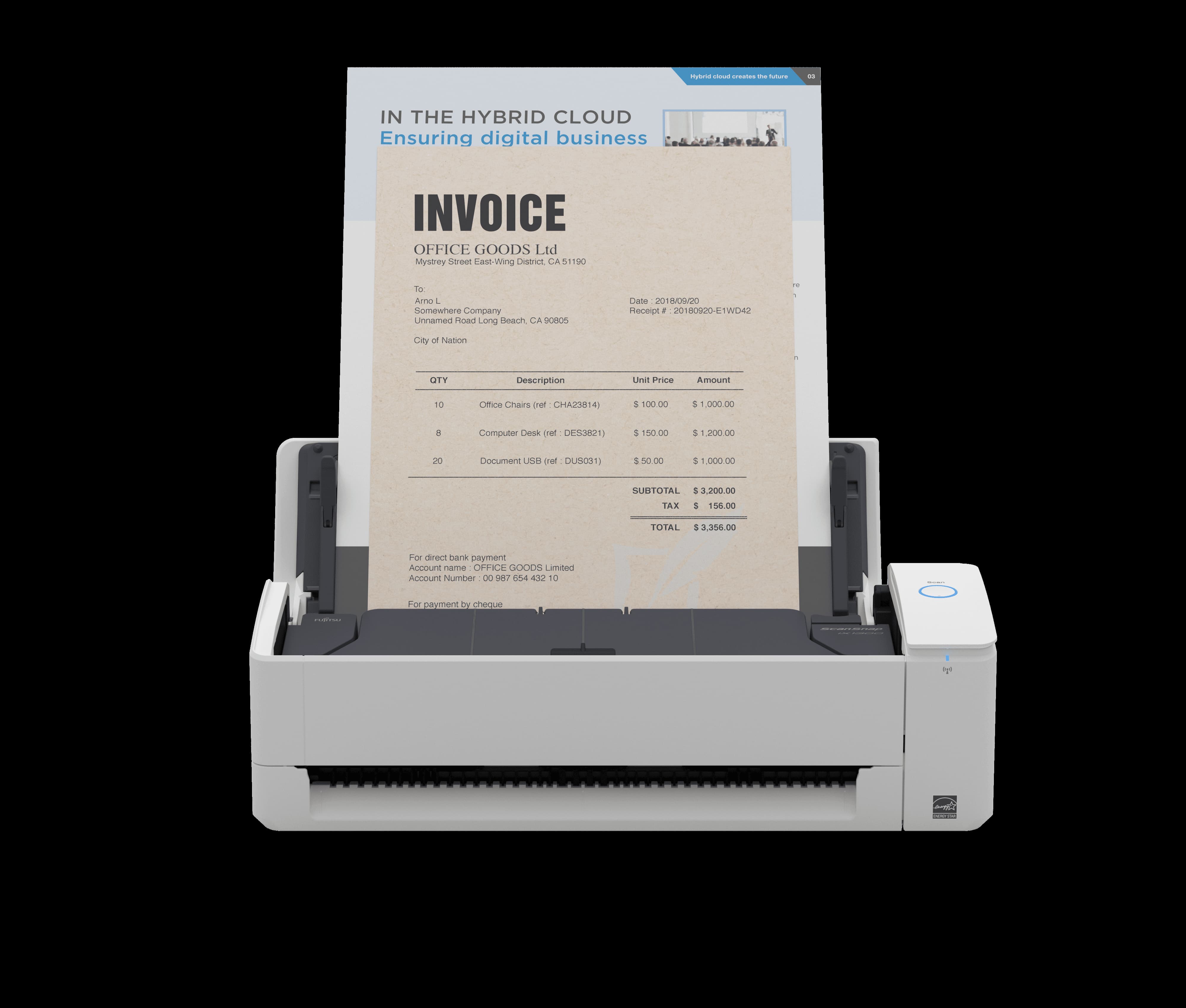

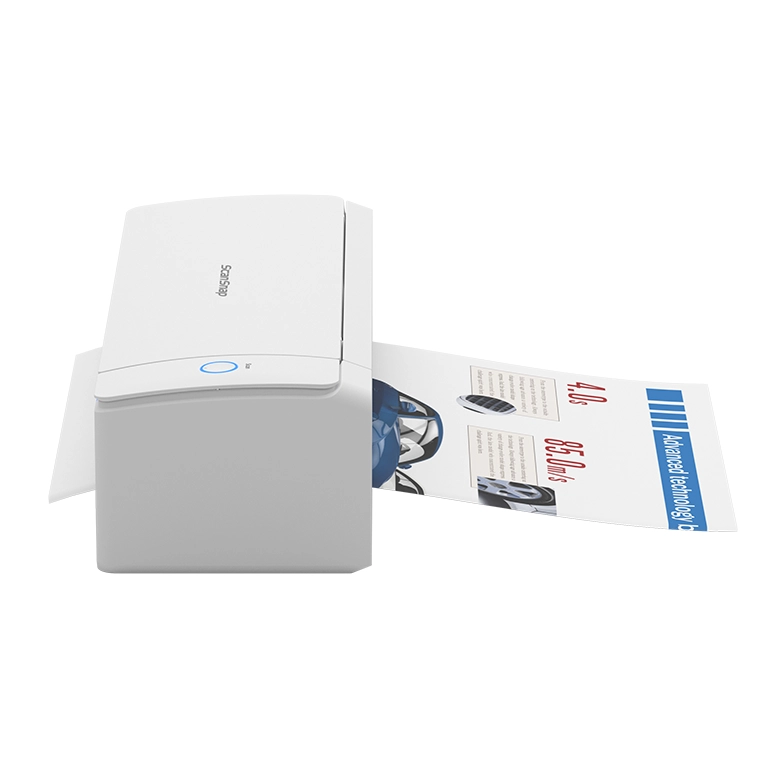

As ScanSnap’s most practical scanner yet, the iX1300 is small with a big impact. It makes it easy for you to maximise personal productivity with a scanner that fits into your life, on any desk, whether you’re working from home or in the office.
Download Data Sheet People who want the flexibility of Wi-Fi and cloud connectivity alongside the versatility of a scanner that fits into any workspace, helping to improve productivity at home or on the go.
Premium personal desktop scanner that also works ‘on the go’
Boosting efficiency with time-saving features
You don’t need to know IT – just how to press a button
| Scanner Type | Public/ Web | Dual Path: Automatic Document Feeder (ADF) + Single Feed (Return Scan), Duplex |
|
| ADF Capacity | Public/ Web | 20 x A4 80 g / m² 20 x Letter 20 lb |
|
| Scanning Colour Modes | Public/ Web | Colour, Greyscale, Monochrome, Automatic Detection (Colour / Greyscale / Monochrome) |
|
| Optical Resolution | Public/ Web | 600 dpi | |
| Image Sensor Type | Public/ Web | CIS x 2 (Front x 1, Back x 1) | |
| Light Source | Public/ Web | 3 Colour LED (Red / Green / Blue) | |
| Scanning Speed (A4 Portrait) | |||
| Scanning Speed (A4 Portrait) @ 200 / 300 dpi | Public/ Web | ADF: Simplex 30 ppm / Duplex 60 ipm Return Path: 5 seconds per page |
|
| Auto Mode (default) | Public/ Web | ADF: Simplex 30 ppm / Duplex 60 ipm Return Path: 5 seconds per page |
|
| Normal Mode (Colour / Greyscale: 150 dpi, Monochrome: 300 dpi) | Public/ Web | ADF: Simplex 30 ppm / Duplex 60 ipm Return Path: 5 seconds per page |
|
| Better Mode (Colour / Greyscale: 200 dpi, Monochrome: 400 dpi) | Public/ Web | ADF: Simplex 30 ppm / Duplex 60 ipm Return Path: 5 seconds per page |
|
| Best Mode (Colour / Greyscale: 300 dpi, Monochrome: 600 dpi) | Public/ Web | ADF: Simplex 30 ppm / Duplex 60 ipm Return Path: 5 seconds per page |
|
| Excellent Mode (Colour / Greyscale: 600 dpi, Monochrome: 1200 dpi) | Public/ Web | Simplex 9 ppm / Duplex 18 ipm Return Path: 14 seconds per page |
|
| Media Support | |||
| Standard Sizes | Public/ Web | A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Legal and Custom Sizes. Folded A3, B4 and Double Letter via Return Path |
|
| Custom Sizes | Public/ Web | Minimum: 50.8 mm x 50.8 mm (2" x 2") Maximum: 216 mm x 297 mm (8.5" x 14") |
|
| Paper Sizes with optional Document Carrier Sheet | Public/ Web | All document sizes listed above | |
| Paper Weight | Public/ Web | ADF: 40 to 128 g/㎡ [11 to 34 lb] A6 or less: 40 to 209 g/㎡ (11 to 56 lb) A8 or less: 128 to 209 g/㎡ (34 to 56 lb) Return Path: Paper: 20 to 413 g/㎡ [5.4 to 110 lb] Book*: 2 mm or less |
|
| Long Page Scanning | Public/ Web | ADF Only: 3,000 mm (863 mm in 32-bit OS) at 300dpi Smart Device: 863 mm (Duplex), 1,117 mm (Simplex) |
|
| Card Scanning | Public/ Web | Return Path only: Vertical or horizontal feeding, thickness of 1.4 mm or less (including embossed) |
|
| Paper Feeding Orientation | Public/ Web | Front Side Up | |
| Multifeed Detection | Public/ Web | Length Detection | |
| ScanSnap Home Image Processing Functions | Public/ Web | Automatic Colour Detection, Automatic Cropping, Automatic Deskew, Automatic Rotation, Blank Page Detection, Brightness (B&W Only), Deskew by Document Text, Document Title Extraction, Document Type Detection, Increase Text Contrast, JPEG Compression, Reduce Bleed-through, sRGB, Vertical Streaks Reduction. | |
| ScanSnap Home Output Filetypes | Public/ Web | JPEG, PDF, Searchable PDF. Password PDF, PDF/A (Windows only) |
|
| Paper Separation Method | Public/ Web | Separation Pad | |
| Local Interface | |||
| Scanner USB Port | Public/ Web | USB 3.2 Gen 1 / USB 2.0 / USB 1.1 (Type-B Connector) | |
| Wi-Fi Interface | |||
| Compliant to | Public/ Web | IEEE802.11b/g/n | |
| Wi-Fi Frequency Band | Public/ Web | 2.4 GHz | |
| Wi-Fi Connection Modes | Public/ Web | Access Point Connect Mode (Infrastructure Mode) Direct Connect Mode (Ad-hoc Mode) |
|
| Wi-Fi Security | Public/ Web | WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TKIP / AES), WPA2-PSK (AES) |
|
| Wi-Fi Protected Setup (WPS) | Public/ Web | WPS2.0 | |
| Human Interface | |||
| LCD Touchscreen | Public/ Web | - | |
| Power Source | Public/ Web | Mains AC | |
| Battery Type & Capacity | Public/ Web | - | |
| Power Requirements | Public/ Web | 100V - 240V AC ±10 % (50 / 60 Hz) | |
| Power Consumption | |||
| Operating Mode | Public/ Web | 17 W or less | |
| Sleep Mode | Public/ Web | 1.7 W or less | |
| Standby Mode | Public/ Web | 0.3 W or less | |
| Operating Environment | |||
| Operating Temperature Range | Public/ Web | 5°C - 35°C (41°F - 95°F) | |
| Operating Humidity Range | Public/ Web | 20% - 80% (non-condensing) | |
| Device Colour | Public/ Web | White / Grey / Silver | |
| Device Dimensions (Width x Height x Depth) | Public/ Web | 296 x 114 x 87 (mm) 11.50" x 6.34" x 5.98" |
|
| Device Weight (approx) | Public/ Web | 2.0 kg (4.4 lb) | |
| Environmental & Regulatory Compliance | Public/ Web | ENERGY STAR® / RoHS | |
| Driver | Public/ Web | ScanSnap specific driver Windows®: Does not support TWAIN / ISIS® macOS®: Does not support TWAIN |
|
| Included Software (available via download) | Public/ Web | ScanSnap Home (All-in-one document management software/driver) ScanSnap Manager (Conventional driver) ABBYY FineReader for ScanSnap™ |
|
